Electrical Specifications(技術數據):
型號 | 相數 | 步距角(DEG.) | 電壓(V) | 電流(A) | 保持轉矩N.M(kg.cm) | 空載啟動頻率(HZ) | 運行頻率(HZ) | 接線圖 | 備注 |
70BF003 | 3 | 1.5°/3° | 27 | 3 | 0.784(8) | 1600 | 1 | ||
75BF001A | 3 | 1.5°/3° | 24 | 3 | 0.788(8) | 1550 | 1 | ||
75BF003 | 3 | 1.5°/3° | 30 | 4 | 0.882(9) | 1250 | 1 | ||
75BF003A | 3 | 1.5°/3° | 30 | 4 | 1.25(12) | 1400 | 1 | ||
75BC340 | 3 | 1.5°/3° | 30 | 3 | 0.392(4) | 2000 | 1 | ||
75BC340A | 3 | 1.5°/3° | 30 | 4 | 0.88(9) | 1900 | 1 | ||
75BC380A | 3 | 0.75°/1.5° | 30 | 3 | 0.68(7) | 2000 | 1 | ||
75BC380 | 3 | 0.75°/1.5° | 30 | 3 | 0.98(10) | 2200 | 1 |

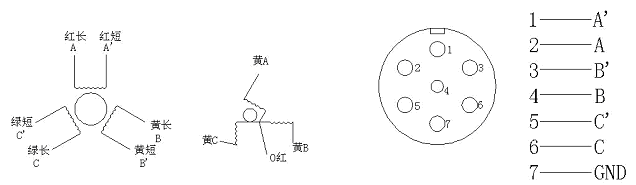

Wiring Diagram(接線圖):

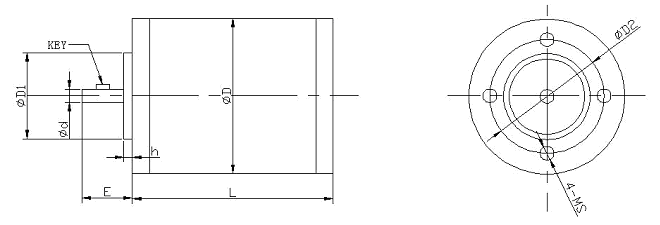

Dimensions(外形圖): unit=mm
Installation size shape（外形安裝尺寸）: unit=mm
型號 | φD | φD1 | h | φd | E | L | φD2 | MS | 鍵KEY | ||
70BF003 | 70 |
| 3 | 6 | 25 | 63 | 54 | 4-M4 | |||
75BF001 | 75 |
| 2 | 6 | 18 | 55 | 68 | 3-M4 | 2×φ10 | ||
75BF001A | 75 |
| 2 | 6 | 18 | 55 | 68 | 3-M4 | 2×φ10 | ||
75BF003 | 75 |
| 2 | 8 | 18 | 77 | 68 | 3-M4 | 2×φ10 | ||
75BF003A | 75 |
| 2 | 8 | 18 | 67 | 68 | 3-M4 | 2×φ10 | ||
75BC340 | 75 |
| 2 | 8 | 25 | 61 | 68 | 3-M4 | 2×φ10 | ||
75BC340A | 75 |
| 2 | 8 | 25 | 77 | 68 | 3-M4 | 2×φ10 | ||
75BC380 | 75 |
| 2 | 8 | 25 | 61 | 68 | 3-M4 | 2×φ10 | ||
75BC380A | 75 |
| 2 | 8 | 25 | 53 | 68 | 3-M4 | 2×φ10 | ||
75BF006 | 75 |
| 2 | 8 | 18 | 60 | 68 | 3-M4 | 2×φ10 |
